C2 KA, Rfid/Mifare, Ip65, Linux, Pin, PoE, BT-Wifi

Anviz C2 KA Access Control: Rfid / Mifare, physical keyboard, for outdoor IP65, Linux, CPU 1 Ghz, Tcp / ip PoE or standalone, Wifi and Bluetooth.

C2 KA, Rfid/Mifare, Ip65, Linux, Pin, PoE, BT-WifiEN
C2 KA, Rfid/Mifare, Ip65, Linux, Pin, PoE, BT-WifiEN
C2 KA, Rfid/Mifare, Ip65, Linux, Pin, PoE, BT-WifiEN

Anviz C2 KA is a compact access control device designed to adapt to any type of door. C2 KA has a refined design and is waterproof with IP65 protection rating, ideal for indoor or outdoor installations. Linux operating system and 1 Ghz CPU. C2 KA is equipped with a double reader for RFID 125kHz and Mifare 13.56 Mhz cards. C2 KA has interfaces with Wiegand In & Out protocol, TCP / IP (PoE), Wi-fi and Bluetooth. It can be installed stand alone or in direct LAN network (with remote relay SC011), or with C2 SR remote head management.



It is an ANVIZ product, distributed exclusively by Osti Sistemi.

Functions and equipment

RFID card reader
Mifare Card Reader
Door release relay
Degree of protection IP65
Web server
LAN network card
PoE (power over ethernet)
Wifi
Bluetooth
Management software

Features

  • Linux operating system.
  • High performance 1 Ghz CPU.
  • Slim and elegant design.
  • For outdoor use with IP65 protection degree.
  • Double reader: Rfid 125 Khz and Mifare 13.56 Mhz.
  • Card reading range: from 10 to 50 mm.
  • The Bionano V10 algorithm verifies the reading in 1 second
  • LED indicators and buzzer for visual and audio feedback
  • Multiple verification modes: Rfid / Mifare dual antenna card, ID+Pincode, Bluetooth with Crosschex app (downloadable from Play store).
  • 5 communication ports: TCP / IP (PoE), Wifi, mini-USB, Bluetooth (APP CrossChex), Rs485.
  • Door open sensor, exit button.

Tecnology

  • Degree of protection IP65.
  • Linux operating system.
  • High performance 1 Ghz CPU.
  • Double reader: EM RFID card (125KHz) and Mifare 13.56 Mhz.
  • Management of up to 10,000 users.
  • Mamorizing of up to 100,000 stampings.
  • Card reading range: from 10 to 50 mm.
  • Identification methods: card, ID+Pincode, App CrossChex.
  • Interfaces: TCP / IP (PoE), Wi-fi, mini-USB, Bluetooth (APP CrossChex), Rs485.
  • Wiegand In & Out protocol support.
  • PoE standard IEEE802.3af and IEEE802.3at.
  • 1 Internal relay for opening the passage.
  • SC011 remote relay (optional).
  • Multi-color LED interface and voice buzzer.
  • 12V DC working voltage.
  • Operating temperature from -10 ° C to 60 ° C
  • Dimensions: (LxHxP) 50 x 159 x 25mm.
  • DC 12V power supply not included.
  • Certificates: CE, RoHS.

Functions and equipment

RFID card reader
Mifare Card Reader
Door release relay
Degree of protection IP65
Web server
LAN network card
PoE (power over ethernet)
Wifi
Bluetooth
Management software


Video

SEE VIDEO Anviz C2 KA Video Presentazione a Sicurezza 2023 Rho (MI) 15-17 Novembre
Anviz C2 KA Video Presentazione a Sicurezza 2023 Rho (MI) 15-17 Novembre
SEE VIDEO Anviz presentazione terminali accessi presenze serie C2
Anviz presentazione terminali accessi presenze serie C2
SEE VIDEO Anviz C2 KA controllo accessi doppia antenna rfid e mifare in wifi e software Jweb-KEY integrato con presenze JuniorWB azienda motori elettrici Bologna
Anviz C2 KA controllo accessi doppia antenna rfid e mifare in wifi e software Jweb-KEY integrato con presenze JuniorWB azienda motori elettrici Bologna
SEE VIDEO Anviz C2 KA controllo accessi per esterno IP65 wifi e software Jweb-KEY integrato con presenze JuniorWB entrata produzione azienda motori elettrici Bologna
Anviz C2 KA controllo accessi per esterno IP65 wifi e software Jweb-KEY integrato con presenze JuniorWB entrata produzione azienda motori elettrici Bologna
SEE VIDEO Anviz C2 KA Controllo Accessi Docce e Servizi in Camping Mestre
Anviz C2 KA Controllo Accessi Docce e Servizi in Camping Mestre

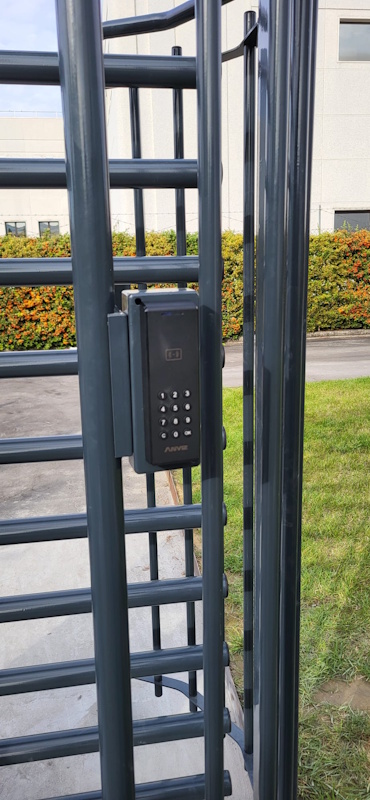

SEE VIDEO Anviz C2 KA controllo accessi badge installato su tornello tutta altezza TX1500 in azienda di produzione tubi e lastre Tribiano Milano
Anviz C2 KA controllo accessi badge installato su tornello tutta altezza TX1500 in azienda di produzione tubi e lastre Tribiano Milano
SEE VIDEO C2 Ka Anviz controllo accessi varco veicolare entrata in azienda tubi e lastre Milano
C2 Ka Anviz controllo accessi varco veicolare entrata in azienda tubi e lastre Milano
SEE VIDEO C2 Ka Anviz controllo accessi cancello veicolare a scorrimento in uscita installato in azienda produttore di tubi e lastre Milano
C2 Ka Anviz controllo accessi cancello veicolare a scorrimento in uscita installato in azienda produttore di tubi e lastre Milano
SEE VIDEO Anviz C2 KA controllo accessi IP65 ingresso officina azienda trattamento superfici metalli Parma
Anviz C2 KA controllo accessi IP65 ingresso officina azienda trattamento superfici metalli Parma
SEE VIDEO Anviz C2 KA controllo accessi Camping Mestre accesso Tag Portachiavi a docce e servizi
Anviz C2 KA controllo accessi Camping Mestre accesso Tag Portachiavi a docce e servizi
SEE VIDEO Anviz C2 KA Controllo Accessi con badge o Pincode presso cantiere Tecnopolo Bologna
Anviz C2 KA Controllo Accessi con badge o Pincode presso cantiere Tecnopolo Bologna
SEE VIDEO Anviz C2 KA Controllo Accessi Cantiere Edile Accesso al solo Personale Autorizzato in Palazzo Storico Koch Ferrara
Anviz C2 KA Controllo Accessi Cantiere Edile Accesso al solo Personale Autorizzato in Palazzo Storico Koch Ferrara
SEE VIDEO Controllo Accessi Cloud Anviz C2 KA e Jweb-KEY Cloud Azienda Fabbricazione Strutture Metalliche Ravenna
Controllo Accessi Cloud Anviz C2 KA e Jweb-KEY Cloud Azienda Fabbricazione Strutture Metalliche Ravenna

Applications
