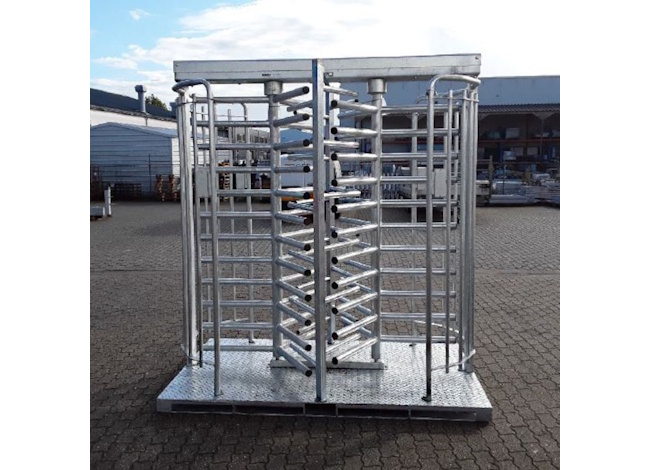

Titan Double Mobile 3 Arms Galvanized

Features, characteristics and advantages

The Titan turnstile has been designed to offer maximum flexibility and practicality. Here are its main features:

• Mobile design: light in weight and easily transportable, Titan can be installed and removed in a few minutes, without the need for masonry work.
• Galvanized steel structure: excellent resistance to corrosion, impacts and atmospheric agents, ensuring long life and reduced maintenance.
• Double 3-arm gate: allows a smooth and safe bidirectional flow, avoiding crowds and ensuring an orderly passage of one person at a time.
• Robust operating mechanism: reliable and precise operation in any condition.
• LED status indications: clear and intuitive information to users, indicating the open or closed status of the gate.
• Integration with access control systems: easily integrates with existing access control systems, such as badge readers, numeric keypads or biometric systems.

Main features:

• Material: galvanized steel
• Number of gates: two
• Number of arms: 3 for gate
• Type of opening: electromechanical
• Opening direction: bidirectional
• Passage width: 2160 mm
• Height: 2350 mm
• Weight: 255 Kg
• Protection: suitable for outdoor use

Fields of application:

• Events: concerts, festivals, fairs, conferences, weddings.
• Sporting events: stadiums, gyms, swimming pools.
• Temporary locations: exhibitions, markets, trade fair stands.
• Industrial environments: temporary construction sites, delimited work areas.
• Domestic use: villas, gardens, private areas.

Advantages:

• Flexibility: can be used anywhere and for any type of event.
• Quick installation: ready to use in a few minutes.
• Easy to transport: light and compact, it can be transported easily.
• Security: guarantees effective and safe access control.
• Durability: The galvanized steel structure ensures a long life over time.
• Aesthetics: Modern and discreet design.

• Double Gate Entry and Exit
• 3 Arms with single person passage per rotation
• Galvanized steel
• Mobile with base plate
• Capacity 15 people per minute
• For outdoor
• Power supply 220 Volt AC
• Frequency 50 Hz / 60 Hz
• Power consumption 50 W (single turnstile)
• Solenoid voltage 24 Volt DC (12 Volt DC on request)
• Logic voltage 24 Volt DC
• Dimensions: 2350 x 2160 x 1300 mm (H x W x D)
• Rotor diameter: 1186 mm
• Weight: 255 kg
• Design: Modular design with bolts for easy transportation and installation. The components can pass through a standard door. They can be packaged disassembled on a pallet or in a transport crate
• Additions: provision for n.4 access control readers. Release for entry/exit rotation controlled by normally open clean contact.
