Catrax FIT

The heart of the Catrax FIT tripod turnstile is incorporated into the arm rotation mechanism, which operates thanks to an electronic system with which it is equipped. The arms, made of high-resistance plastic material, open smoothly to allow the passage of one user at a time and close automatically once the turnstile has been passed.

Main features:

• Tripod: The three-arm structure ensures greater stability and safety.
• Quality materials: Steel and plastic ensure resistance and durability over time.
• Design: The minimalist lines and neutral colors adapt to any type of environment.
• Arm Rotation: The arms open and close softly and silently.
• Electronic Control: The opening and closing of the arms are directed precisely and reliably.

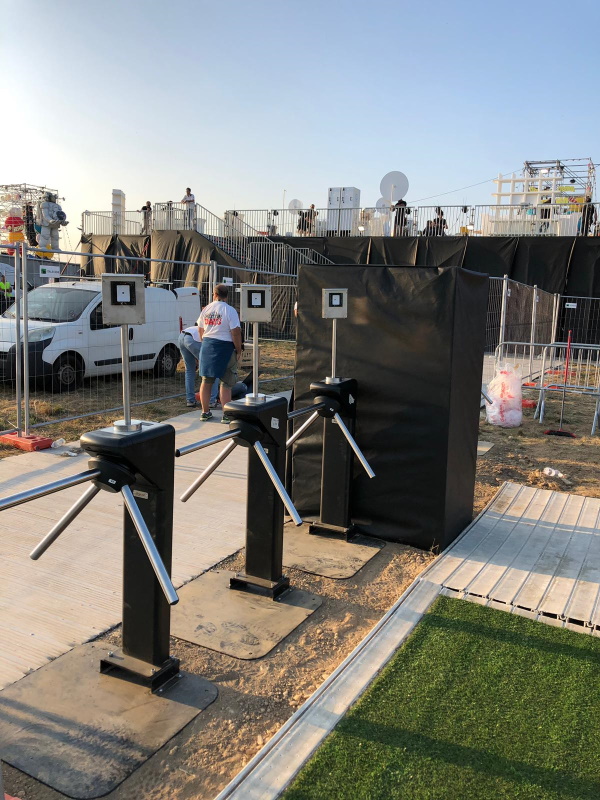

• Integration: It is possible to install badge (card) or barcode readers.
• Drop Arm: For emergencies, the foldable arms automatically lower to allow evacuation.

Application Contexts:

• Residential Buildings: Access control to condominiums or common areas.
• Offices and Companies: To check access to restricted areas.
• Construction Sites: To limit access to authorized personnel only.
• Sports Centers: To manage entrances and exits from changing rooms or gyms.
• Schools and Universities: To monitor entry to areas or buildings.
• Museums and Art Galleries: Management of visitor flows.

Advantages:

• Access Control: Timely management of user flows.
• Security: Preventive verification of unauthorized access.
• Ease of use: Intuitive and easy to use.
• Robust: Resistant to impacts and external factors (cold, heat, etc.).
• Aesthetics: Modern and minimalist design.
• Flexibility: Adaptable to different needs and environments.

• Brand: Digicon
• Structure: monobloc in pressed steel painted with epoxy powders
• Interior: steel painted with epoxy powders
• Upper cover: ABS with stainless steel plate
• Arms: stainless steel with black plastic caps
• Mechanical rotation device with end-of-rotation lock
• Bidirectional passage control
• Electromechanical lock to ensure a single rotation
• CPU control board that provides output signals on the passages
• Integrable with any access control reader (badge, fingerprint....)
• Capacity: 21-23 people per minute
• Depth (mm): 753
• Width (mm): 782
• Height (mm): 1004
• Passage width (mm): 500
• Weight: kg. 30
• Color: Black
• Weather resistance: Indoor use only
• Switching power supply 220Vac . 12 Vdc 2 A
